[DOCKET NO. PHMSA-2013-0255 Amdt. Nos. 192-130 195-105 ] Document Number: 2022-07133 CFR: 49 CFR 192 49 CFR 195
The Pipeline and Hazardous Materials Safety Administration (PHMSA) has announced a new final rule that took effect on October 5, 2022. The rule includes several highlights specific to leak detection, such as the application to most Type A gas gathering, gas transmission, and hazardous liquid pipelines with diameters of 6 inches or greater. A small subset of rural gathering pipelines that cross bodies of water greater than 100 feet wide are also included.

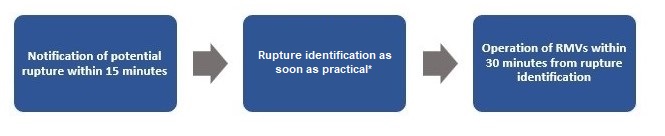

Under the new rule, a rupture is defined as an “unanticipated or unplanned flow rate change of 10 percent or greater or a pressure loss of 10 percent or greater, occurring within a time interval of 15 minutes or less.” Relevant requirements include leveraging upstream/downstream pressure monitoring and effective leak detection systems, establishing written procedures for identifying and responding to a rupture, and responding to an identified rupture by closing Remote Mainline Valves (RMVs) to isolate the segment within 30 minutes.
However, gathering pipelines that connect terminals and processing facilities typically lack proper instrumentation such as SCADA and flow meters. That’s where Vanmok® Cloud technology comes in. Our technology provides a cost-effective solution for notification and identification of ruptures of 5% or greater within 15 minutes, relying solely on pressure transmitter data. This eliminates the need for SCADA and flow meters, making compliance with the new rule easier and more efficient.
*PHMSA initially suggested a 10 minute time limit but after receiving industry feedback, decided to exclude a time specification in the final rule
If you’re looking for support with your ongoing compliance efforts, the Vanmok team of experts is ready to help. Contact us at 780-989-1286 or firstname.lastname@example.org to learn more about how our cost-effective rupture detection package can help you meet the new PHMSA requirements.
Find out how Vanmok Leak Detection helped a major USA pipeline operating company achieve regulatory compliance with the new PHMSA final rule for rupture detection on Short Lines.
This case study explores how Vanmok Leak Detection assisted a major USA pipeline operating company in achieving regulatory compliance with the new Pipeline and Hazardous Materials Safety Administration (PHMSA) final rule for rupture detection on Short Lines. The customer sought a leak detection solution that offered high sensitivity and reliability while minimizing costs. Vanmok’s cost-effective LD Cloud solution, which relies solely on pressure data, proved to be an ideal choice. By utilizing Vanmok Gateways connected to pressure transmitters and leveraging cloud-based technology, the system achieved leak detection sensitivity up to 1 m³/hr or 3% of the delivery flow rate. The solution surpassed API-1130 performance metrics, demonstrated reliability during abnormal operating conditions, and required no flowmeters or modifications to existing infrastructure. With fast implementation and scalability, Vanmok’s solution proved to be an efficient and compliant choice for the pipeline operating company.
View More >
Cost Comparison of Vanmok Cloud Solution and Computational Pipeline Modeling (CPM) for Short or Type A Pipeline Midstream Applications
Vanmok offers leak detection solutions that are highly cost competitive in the current market. Our midstream customers, particularly those with short or Type A gathering pipelines, seek results with the lowest possible investment and maintenance costs. This case study compares the total installed cost of Vanmok Cloud solution with a CPM-based approach in short midstream applications involving refined and partially-refined fluids.
View More >
Cost Comparison of Vanmok Cloud Solution and Competing Technologies in Upstream Salt Water and Emulsion Applications
Vanmok offers leak detection solutions that are highly cost competitive in the market. Our upstream customers prioritize low investment and maintenance costs for their production-related gathering and water disposal systems. This case study compares the total installed cost of Vanmok Cloud based leak detection solution with competing technologies in emulsion and salt water applications.
View More >
